Model: 2000 X 1000 X 3 mm

Wave Distance: 83 mm | Wave Height: 38 mm | Waves: 12

Colors: Red, Black, Green, French Blue; other colors customizable

Bitumen Content: >40%

Water Absorption: <20%

Tear Strength: 460 N

Bending Strength: 1470 N/M²

Weight:approx 6.5 kg

Packing: 200 sheets per pallet

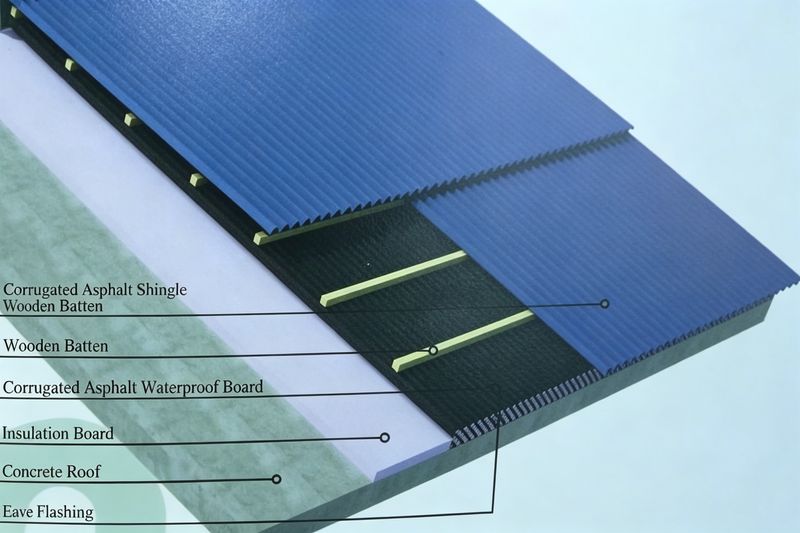

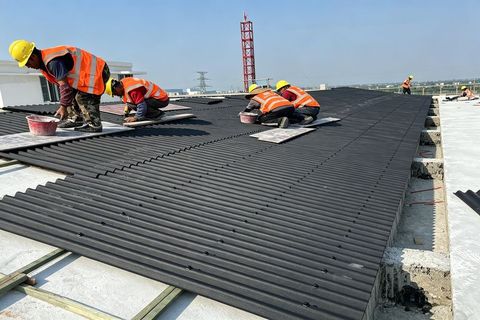

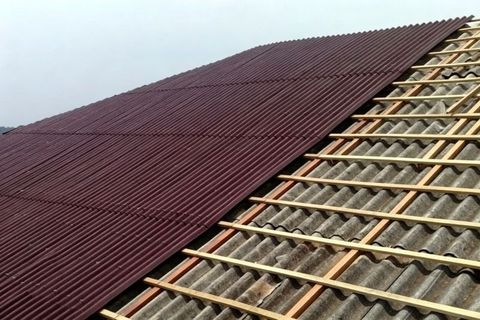

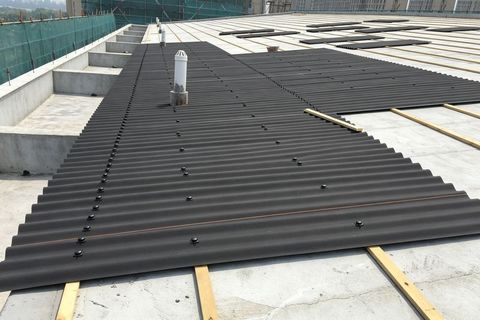

Installation: Can be fixed directly on concrete roof with expansion screws; also on wooden or galvanized steel battens.

Warranty: 15 years

Standards: EN 534:2006

Features & Advantages

1. Light weight: only 3.5 kg per square meter.

2. Excellent waterproof performance.

3. Ventilation & dehumidification: 200 cm³ space under tiles.

4. Weather resistance, UV resistance, acid and alkali resistance.

5. Easy and fast installation on various bases.

6. Strong wind resistance: withstands level 12 typhoons.

7. Lightweight & earthquake resistant.

8. Pyramid texture for self-cleaning and low water permeability.

9. Recyclable, labor-saving and time-saving.

Construction Method Statement for Corrugated Bitumen Sheets

Please check our professional construction method statement for Corrugated Bitumen Sheets:https://www.safebuild.cn/english/cms-waterproof.asp
